SCCM 2012 – Enable Powershell in WinPE

Sometime, you may need to activate Powershell in your SCCM WinPE boot image. This can be used by advanced script, or to display a GUI in Powershell. System Center Configuration Manager 2012 offers the possibility to easily integrated this feature.

WinPE Powershell

WinPE Powershell

How to enable this feature with SCCM 2012 R2:

WinPE Boot Image

The first thing to do is to enable wanted Powershell components into the Boot Image:

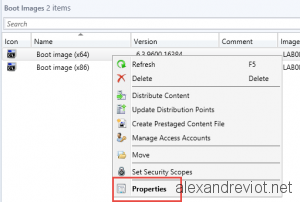

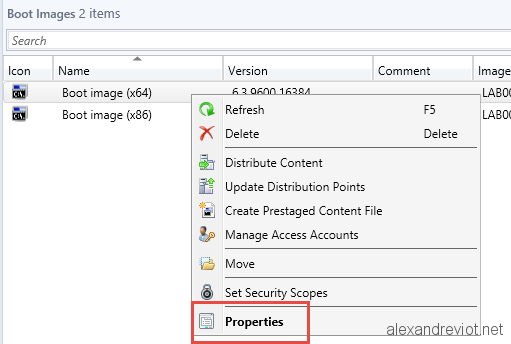

  • On your selected Boot Image, select Properties:
Boot Image Properties

Boot Image Properties

  • On the Optional Components tab,  click on the star:

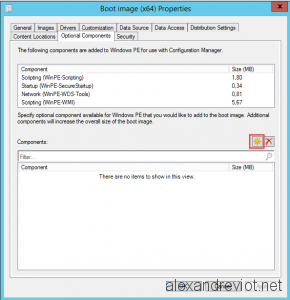

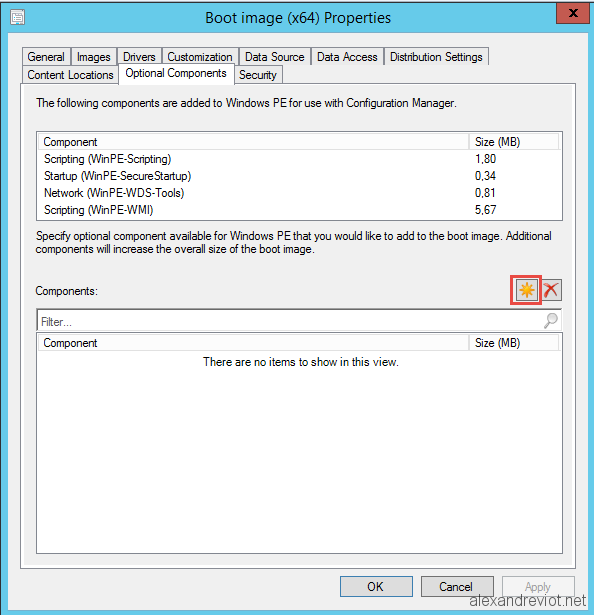

Boot Image Add Component

Boot Image Add Component

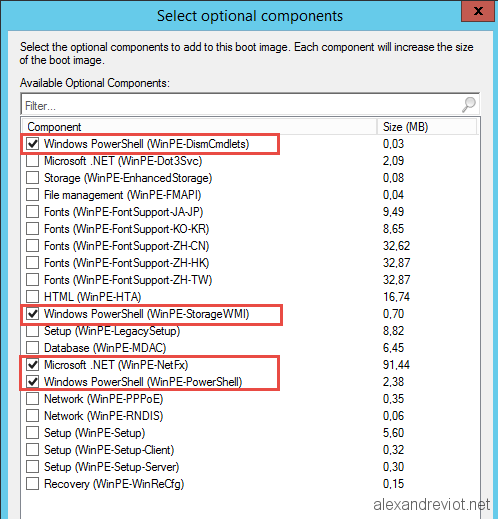

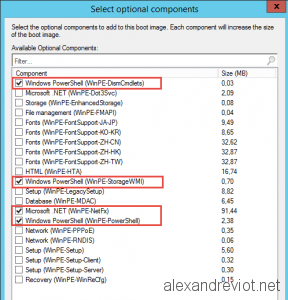

  • If you want all Powershell features in WinPE, enable all of components, otherwise just check what you need.
    • Windows Powershell (WinPE-DismCmdlets)
    • Windows Powershell (WinPE-StorageWMI)
    • Windows Powershell (WinPE-Powershell)
    • Microsoft .Net (WinPE-NetFx)

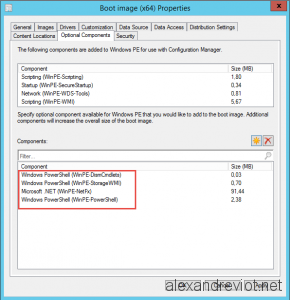

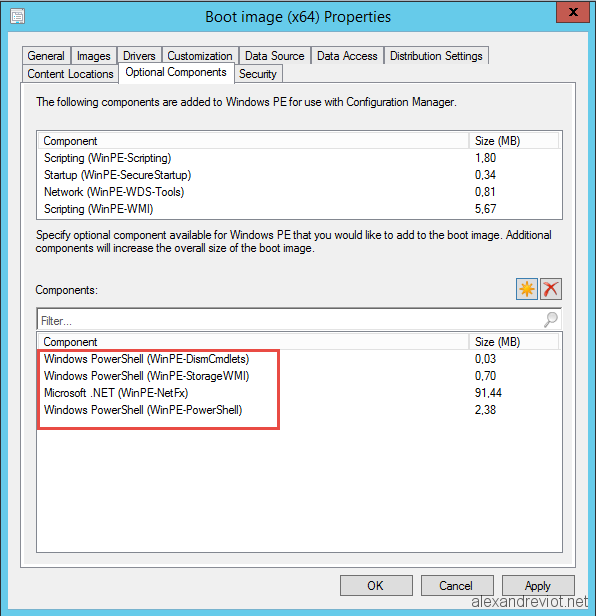

Boot Image Powershell Components

Boot Image Powershell Components

Boot Image Powershell Components

Boot Image Powershell Components

Distribute Content

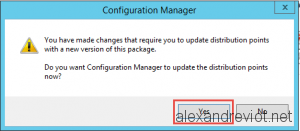

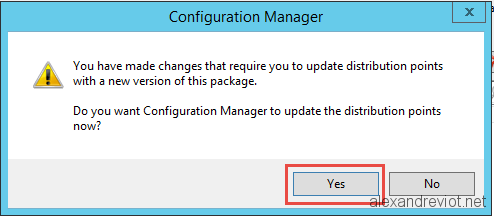

Don’t forget to update all Distribution Points with the new version of the Boot Image. If you don’t, OSD continues to use the old version of the image.

Update Distribution Point

Update Distribution Point

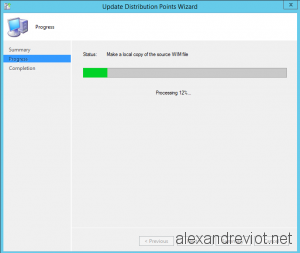

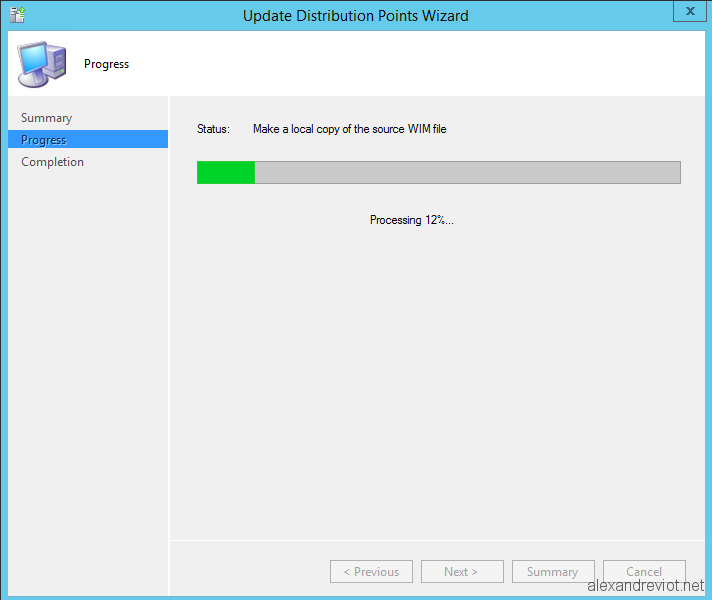

Boot image Refresh

Boot image Refresh

More

You can get more information about SCCM and how to customize boot image here.
