Windows 8.1 – Force Start Menu Layout

When you deploy Windows 8.1 in your environnement, you may define a strategy to force all users to have the same Start Menu Layout. This layout was defined by IT Team and will be provide to all computers.

For example, I set a custom layout: I added some tools and application groups:

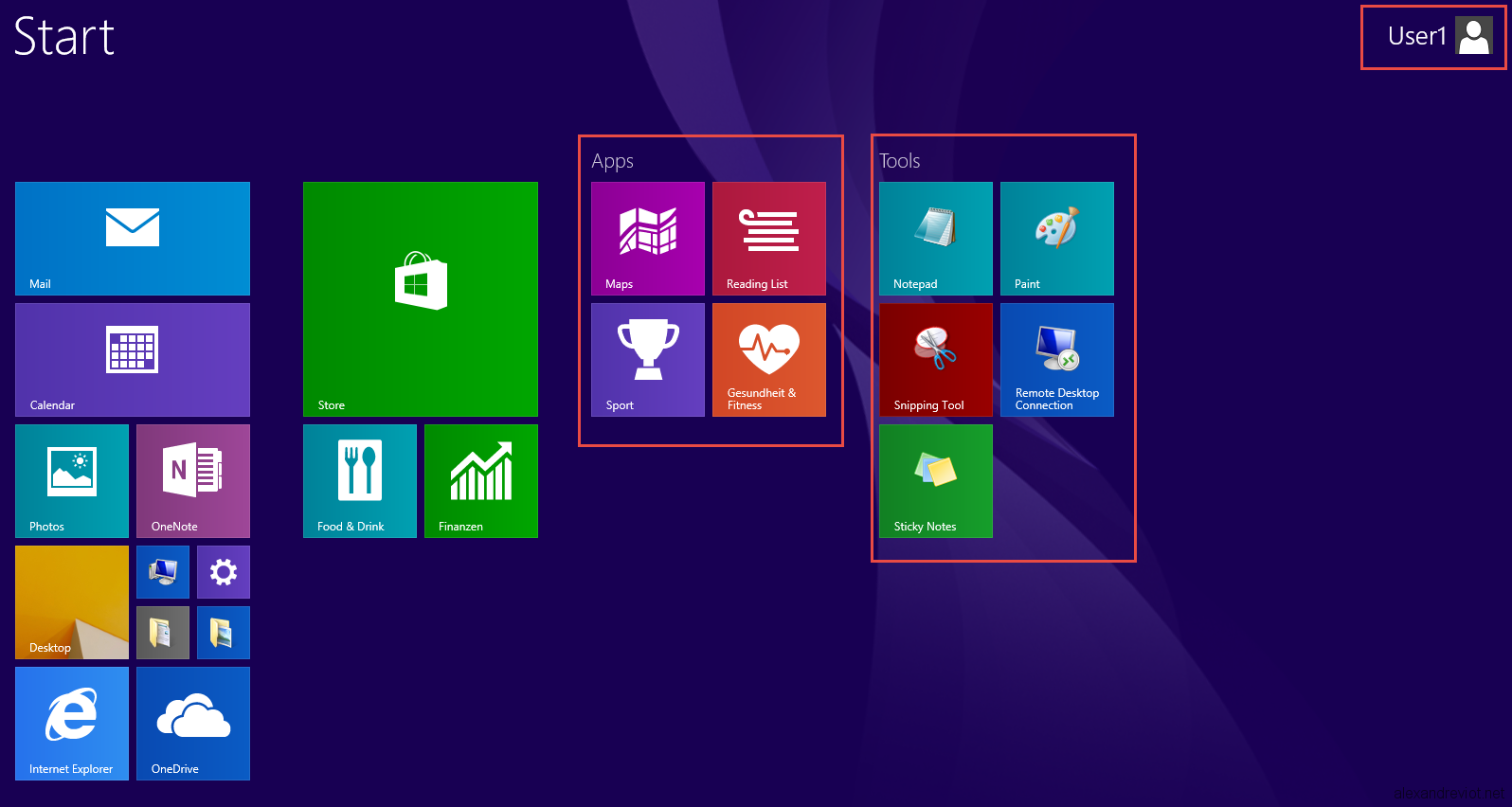

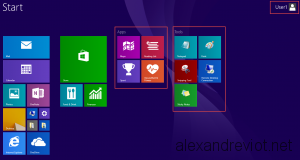

Windows 8.1 Custom Start Menu

Windows 8.1 Custom Start Menu

If you want to deploy this Start Menu Layout, you can do it with:

  • Powershell cmdlet on the computer
  • ConfigMgr (SCCM)
  • Group Policy

Default Start Menu with Powershell

Microsoft released two Powershell cmdlets to manage the Start Menu Layout: Export-Startmenu and Import-Startmenu.

With the cmdlet Import-StartMenu, the default layout will be imported in the default user profile. It means that all new users will get the default layout. But,  if the user modifies, pins or removes applications and shortcut, modifications are saved in his profile.

  • Export the modified Start Menu layout from your validation computer, with
    Export-StartLayout -As bin -Path yourpath
Export-StartLayout Powershell

Export-StartLayout Powershell

  • Import your default start layout file into your current system with
    Import-StartLayout -LayoutPath yourPath -Mountpath C:\
Import-Startlayout Powershell

Import-Startlayout Powershell

  • When a user logon for the first time on the computer, he will get the new default Start layout:
New User Default Start Layout

New User Default Start Layout

Copy default with ConfigMgr

It is possible to use System Center Configuration Manager during the OSD to deploy this new Start Menu. However, we can not use Import-Startlayout cmdlet but we will copy the .bin file to the default profile with a specific name : AppsFolderLayout.bin.

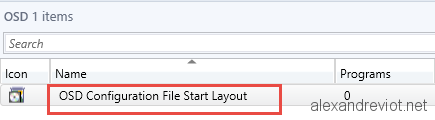

  • Create a SCCM Package with your .bin file.
SCCM Package

SCCM Package

  • In your Task Sequence, create a new Task with the command line :
    xcopy CustomStart.bin "%SystemDrive%\Users\Default\AppData\Local\Microsoft\Windows\AppsFolderLayout.bin" /Q /Y

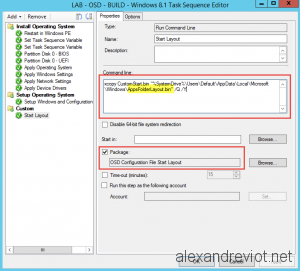

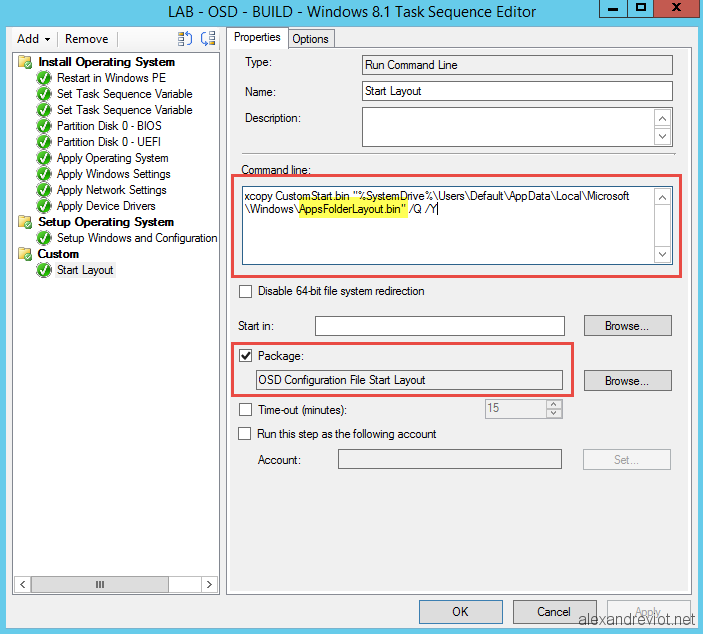

SCCM OSD Import StartLayout

SCCM OSD Import StartLayout

Force Start Menu using Group Policy

We can also deploy a Start Menu layout using GPO. With Group Policy, the layout is forced on each user. If the user logoff and logon, all modifications on the start menu are lost. Revert to the default layout on each logon.

  • With GPO, the .bin file can not be used. We need to export the default layout in XML
    Export-StartLayout -As xml -Path yourpath
Export-StartLayout XML

Export-StartLayout XML

  • Create a GPO to enable the Start Layout:
    • Path: User Configuration/Policies/Administrative Templates/Start Menu and Taskbar
    • Setting: Start Screen Layout
    • Value: Enabled

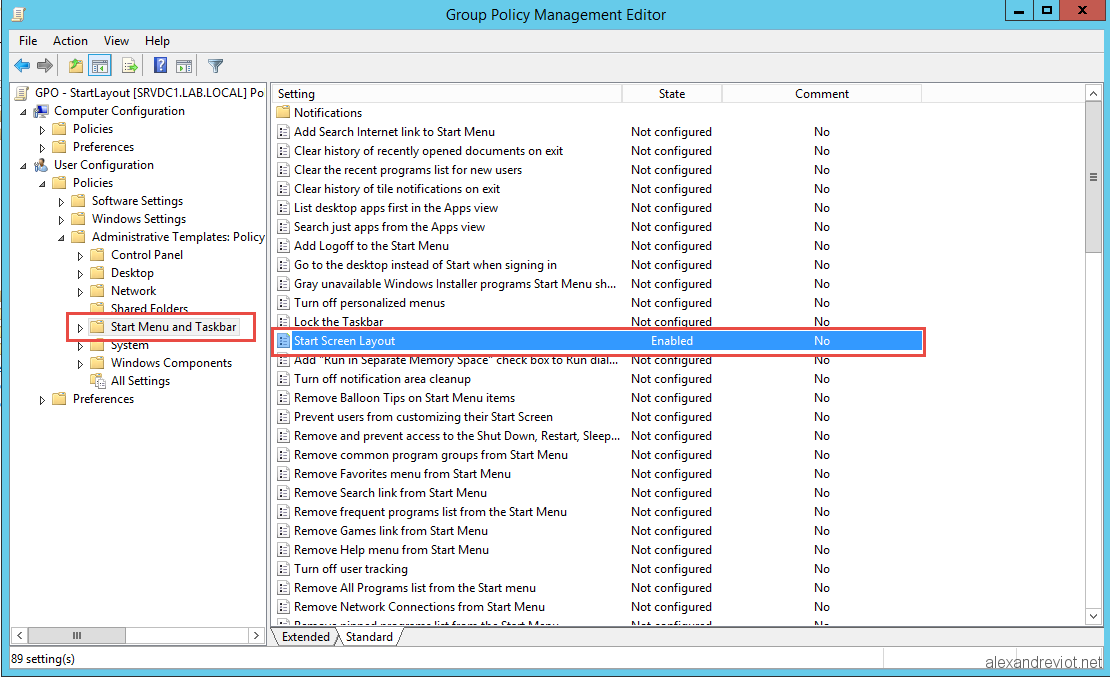

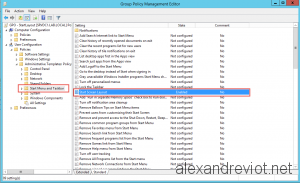

GPO Start Screen Layout

GPO Start Screen Layout

  • Enable the setting and fill information need. A UNC path must be set.

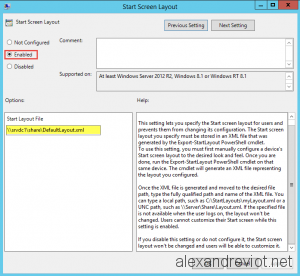

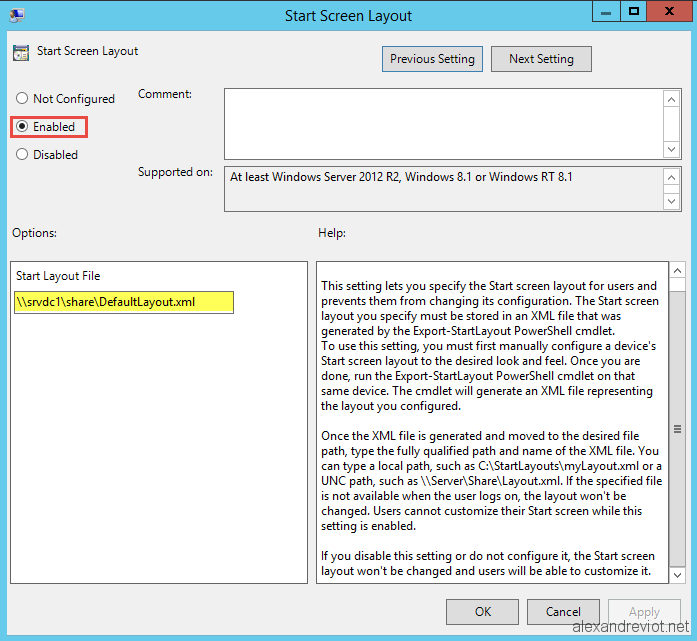

GPO Start Screen Setting

GPO Start Screen Setting

More

You can get more information about cmdlet here.
